Lifter Products

MOBILE LIFTER SOLUTIONS

Mobile lifters allow for flexibility in tight quarters or dumping into multiple locations. When not in use, it rolls to store away easily. These units ship standard with indoor/outdoor battery charger and deep cycle 12-volt battery.

Atlas – 3081 SERIES MT

Our Atlas lifter is designed to dump 2-wheel caster carts as well as Toter Atlas 32 and 44 gallon containers, and most competitive barrel-style containers with side lift handles. Dumps into stationary and self-contained compactors; front or side load containers; roll-off open top containers; through-wall compactor chutes, etc.
Part Base Dimensions w/out chuteLoad Load Rating Dump Height Power Supply

3081-MT-1000

 L53.5” x W35” x H43”

400 lbs

50” – 84”

12-volt battery (DC)

Base Price : $8,200

Saddle – 3081 SERIES MT

The Saddle 3081 SERIES MT Lifter is designed to work Toter 32/48/64/96 gallon Two-Wheel and Caster Carts only
PartBase Dimensions w/out chuteLoadLoad RatingDump HeightPower Supply

3081-MT-5000

L53.5” x W35” x H43”

400 lbs

50” – 84”

12-volt battery (DC)

Base Price : $8,250

Rover – 3063 SERIES MT

Rover 3063 SERIES provides a greater range of dump height options. Also available for this unit as an add-on option: 3063-MT-6008 Auto-lock Hydraulic System for increased stability when dumping on uneven surfaces. Lifter is designed to work Toter 32/48/64/96 gallon Two-Wheel and Caster Carts only.
PartDimensions depend on modelLoad RatingDump HeightPower Supply

3063-MT-4018



400 lbs

41.5” – 43.5”

12-volt battery (DC)

3063-MT-4020



400 lbs

45.5” – 47.5”

12-volt battery (DC)

3063-MT-4022



400 lbs

49.5” – 51.5”

12-volt battery (DC)

3063-MT-4024Towable



400 lbs

53.5” – 55.5”

12-volt battery (DC)

3063-MT-4124Non-Towable



400 lbs

53.5” – 55.5”

12-volt battery (DC)

3063-MT-4126



400 lbs

57.5” – 59.5”

12-volt battery (DC)

3063-MT-4128



400 lbs

61.5” – 64.5”

12-volt battery (DC)

3063-MT-4132



400 lbs

69.5.” – 74.5”

12-volt battery (DC)

Base Price : $8,975

Economy – 3069 SERIES MT

Our most economically designed lifter. Lifter is designed to work with Toter 32/48/64/96 gallon Two-Wheel and Caster Carts only.
PartBase Dimensions w/out chuteLoadLoad RatingDump HeightPower Supply

3069-MT-2000

L39” x W48” x H46.5”

400 lbs

48”

12-volt battery (DC)

Base Price : $7,950

NEW! Global Dumper – 3065 CS SERIES MT

The Global Dumper handles all ANSI Standard cans from 32 to 96 gallons. Works with two-wheel carts and caster carts.
PartBase Dimensions w/out chuteLoadLoad RatingDump HeightPower Supply

3065-CS



400 lbs

48”

12-volt battery (DC)

Base Price : $9,975

STATIONARY LIFTER SOLUTIONS

Stationary lifters are designed for permanent mounting into concrete or metal pad. Control options include manual or push-button controls.

Stand Mount – 3063 SERIES ST

Actuator operated with more versatile dump height options allows you to dump Toter 32/48/64/96 gallon Two-Wheel and Caster Carts only.
PartDimensions depend on modelLoad RatingDump HeightPower Supply

3063-ST-4124



400 lbs

49.5” – 54”

115/230V single phase, 2 HP

3063-ST-4324



400 lbs

49.5” – 54”

208/230/460V three phase, 2 HP

3063-ST-4126



400 lbs

52.5” – 58

115/230V single phase, 2 HP

3063-ST-4326



400 lbs

52.5” – 58

208/230/460V three phase, 2 HP

3063-ST-4128



400 lbs

57.5” – 62”

115/230V single phase, 2 HP

3063-ST-4328



400 lbs

57.5” – 62”

208/230/460V three phase, 2 HP

3063-ST-4132



400 lbs

65.5” – 70”

115/230V single phase, 2 HP

3063-MT-4132



400 lbs

65.5” – 70”

65.5” – 70” 208/230/460V three phase, 2 HP

Base Price : $8,975

Atlas – 3081 SERIES ST

The Atlas lifter is designed to dump 2-wheel and caster carts as well as Toter Atlas 32 and 44 gallon containers, and most competitive barrel-style containers with side lift handles. Dumps into stationary and self-contained compactors; front or side load containers; roll-off open top containers; through-the-wall compactor chutes, etc.
PartBase Dimensions w/out chuteLoadLoad RatingDump HeightPower Supply

3081-ST-1000

 L53.5” x W35” x H43”

400 lbs

68” – 84”

115/230/480V single phase and three

Base Price : $8,275

Saddle – 3081 SERIES ST

The Saddle lifter dumps Toter 32/48/64/96 gallon 2-wheel and caster carts. Dumps into stationary and self-contained compactors; front or side load containers; roll-off open top containers; through-the-wall compactor chutes, etc.
PartBase Dimensions w/out chuteLoadLoad RatingDump HeightPower Supply

3081-ST-5000



400 lbs

68” – 84”

115/230/480V single phase and three phase, 1 – 3HP

Base Price : $8,450

Universal / Pan Lifter / Box Dumper – 3078 SERIES ST

Available as a fork or pan lifter. These double-cylinder units can dump from a 32 gallon can to a 4 cubic yard container. Do you have a non-standard container? We will customize this unit to fit your needs.
PartBase Dimensions w/out chuteLoadLoad RatingDump HeightPower Supply

3078-LP-5000



2,500lbs

30”

208/230/460/600V single or three phase, 5 HP

3078-XX-6000



2,500lbs

48-70”

208/230/460/600V single or three phase, 5 HP

3078-BD-7000



2,500lbs

48”-65”

208/230/460/600V single or three phase, 5 HP

Base Price : $12,975

Twin Post High Lift – 3077 SERIES ST

Our most versatile unit is available as a fork or pan lifter. Customizable to dump two units at once, it is also our highest reaching lifter going from 4 feet to 20 feet. This unique unit can dump from a 32 gallon can to a 4 cubic yard container. Do you have a non-standard container? We will customize this unit to fit your needs.
PartBase Dimensions w/out chuteLoadLoad RatingDump HeightPower Supply

3077-XX-0000



Up to 3,000lbs

48” – 240”

208/230/460/600V single or three phase, up to 10 HP

Base Price : $15,475

Candy Cane – 3064 SERIES ST

Its ability to dump high (120 inches) and deep into a hopper comes in handy for those who deal in bulk amounts of waste and materials. Works with Toter two-wheel carts and caster carts.
PartBase Dimensions w/out chuteLoadLoad RatingDump HeightPower Supply

3064-ST-2000



400 lbs

72” – 120”

208/230/460V single or three phase, 2 HP & 3 HP

Base Price : $15,900

NEW! Global Dumper – 3065 CS SERIES ST

The Global Dumper handles all ANSI Standard cans from 32 to 96 gallons. Works with two-wheel carts and caster carts.
PartBase Dimensions w/out chuteLoadLoad RatingDump HeightPower Supply

3065-CS



400 lbs

48”

208/230/460/600V single or three phase, 5 HP

Base Price : $10,250

MOUNTED LIFTER SOLUTIONS

Truck, compactor, bailer, stand or wall mounted lifters are designed to reduce back injuries wherever permanent mounting is needed.

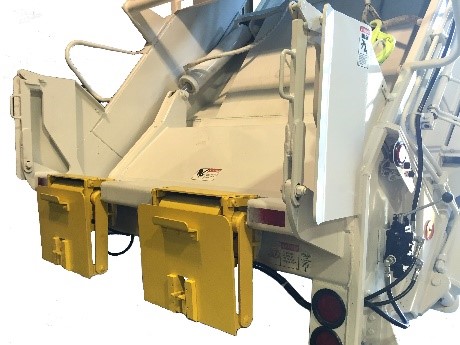

Trim Lifter – 3063 SERIES

The Trim Lifter handles Toter cans from 32 to 96 gallons. Works with two-wheel carts and caster carts.
PartBase Dimensions w/out chuteLoadLoad RatingDump HeightPower Supply

3063-TL



400 lbs

Varies

PTO-Driven

Base Price : $5,975

LIFTER SAFETY SOLUTIONS AND ACCESSORIES

Our base-lifters are designed with safety and ergonomics in mind. Customizable to meet your requirements; from food grade to outdoor-use. We build lifters to suit your needs.

  • Limit Switches
  • Flashing Light w/Horn
  • Safety Cages
  • Auto-lock System
  • Palm Buttons
  • Timers
  • Floor Stop
  • Manual Hand-Valve Controls
  • Limit Switches
  • Flashing Light w/Horn
  • Safety Cages
  • Auto-lock System
  • Palm Buttons
  • Timers
  • Floor Stop
  • Manual Hand-Valve Controls

SAFETY FEATURES, POWER UNITS AND CONTROLS

Auto-lock System: Auto Lock system uses cylinders to lift the unit in use, so the unit does not move during operation.

Power Unit: We have a power unit that fits your current electrical requirements from single to three phase, from 115 to 600 volts.

Batteries and Battery Box: All Mobile Lift Units are shipped with a 12-volt power unit and battery. An optional 12-volt battery charger is available.

Button Operated Electronic Controls

Key Locked Controls

Lever Operated Hydraulic Controls
